Government
Site Utility
Electric Distribution Renovation and Replacement
Madison, Wisconsin
SPECIFICATIONS
LOCATION
Madison, WI
CLIENT
Terra
OWNER
The State of Wisconsin
ARCHITECT
Affiliated Engineers, Inc.
CONTRACT AMOUNT
$1.4M
SYSTEM INSTALLATION

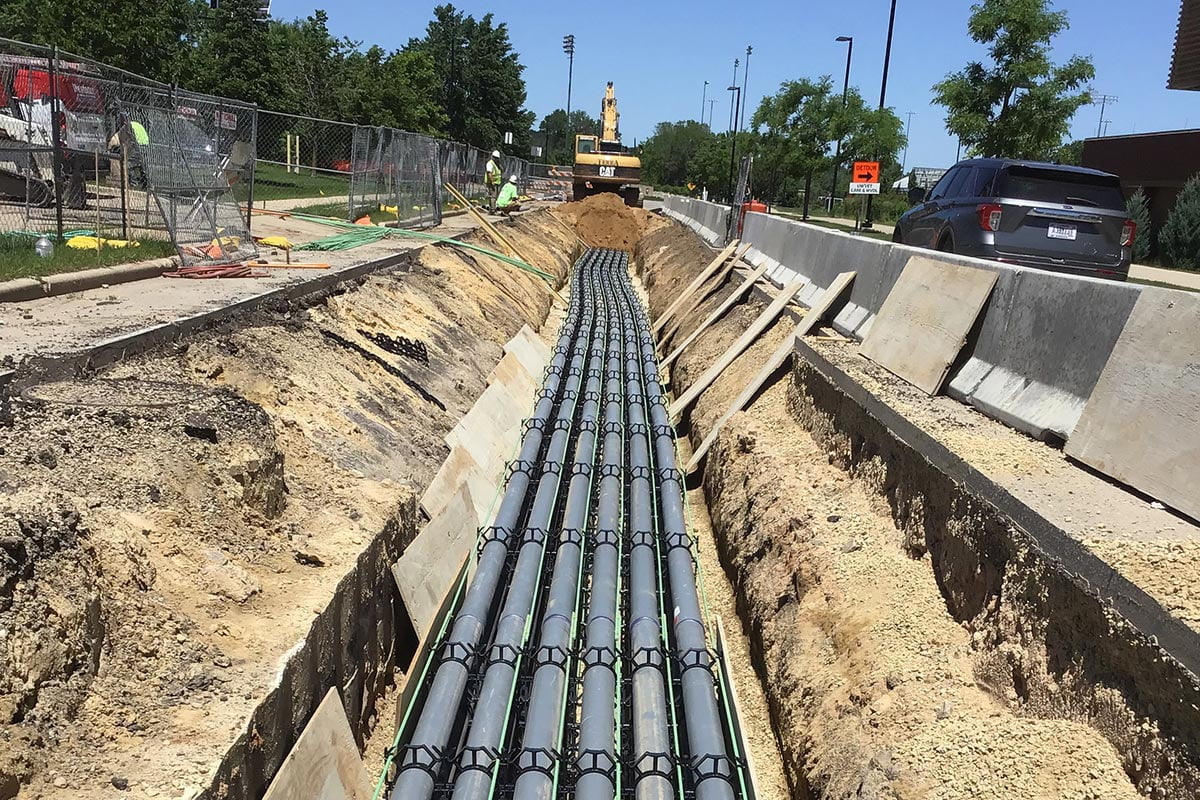

Component #1: Over 26,000′ of electrical duct bank from the Walnut Street Switching Station to two existing manholes within the utility corridor located in Observatory Drive. All the PVC will be 5” SCH 40 with 20′ #4 bare copper concrete encased electrode.
Component #2: Installing four sets of conductors through existing underground ducts from the Dayton Street Switching Station to the Athletic Operations Switching Station, creating two new paralleled heavy tie feeders to connect the switching stations together. The medium voltage cable is 1/C #350kCMIL 15kV Copper and there is about 47,622’ and #350MCM Copper XHHW-2 ground at about 15,847’ total.
